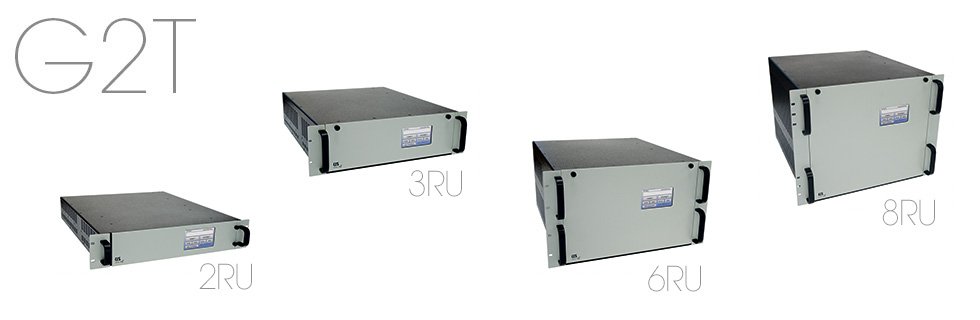

all the G2T mainframes G2T 2RU 3RU 6RU 8RU

G2T Mainframe Selector

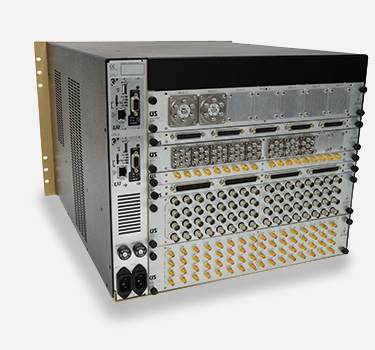

G2 system with mixed modules G2T1600Since our Series G2 was originally introduced, constant product refinements have been made. The latest Series G2T Mainframe are the most exciting mainframe yet. They feature a color touchscreen and our C3 Controller CPU. This combination brings powerful new features and capabilities.

The rack mount Series G2T "mainframes" are available in four sizes to accommodate the needs of various sized applications. They feature a front panel menu driven touchscreen, single or dual (redundant) front loading hot-swap power supplies, and single or dual (redundant) C3 Controllers (6RU and 8RU units only). Standard interfaces are 10/100 Ethernet (LXI), multi-serial (RS-232C, RS-422A or RS-485), USB 2.0, or GPIB (using our GPIB-USB adapter). The units are designed for any international AC power source.

Series G2 Product Page
Series G2 Modules
Programmers Guide PDF

Mainframe Configurations





Model
Module
Slots
Supply Type
(Vcc, Vdd, Vee)
Dual
Supplies
Dual
CPU
Dual AC
Input
Size
(RU)

G2T4-S100-1
4 -100 (+5V,+15V, -15V) No No No 2RU G2T400-S100-1 mainframe analog digital switch matrix router
G2T4-D100-1
4 -100 (+5V,+15V, -15V) Yes No No 2RU G2T400-D100-1 mainframe analog digital switch matrix router
G2T4-S200-1
4 -200 (+5V,+5V, -5V) No No No 2RU G2T400-S200-1 mainframe analog digital switch matrix router
G2T4-D200-1
4 -200 (+5V,+5V, -5V) Yes No No 2RU G2T400-D200-1 mainframe analog digital switch matrix router
G2T4-S207-1
4 -207 (+5V,+7V, -5V) No No No 2RU G2T400-S207-1 mainframe analog digital switch matrix router
G2T4-D207-1
4 -207 (+5V,+7V, -5V) Yes No No 2RU G2T400-D207-1 mainframe analog digital switch matrix router
G2T4-S600-1
4 -600 (+5V,+15V, N/A) No No No 2RU G2T400-S600-1 mainframe analog digital switch matrix router
G2T4-D600-1
4 -600 (+5V,+15V, N/A) Yes No No 2RU G2T400-D600-1 mainframe analog digital switch matrix router
G2T6-S100-1
6 -100 (+5V,+15V, -15V) No No Yes 3RU G2T600-S100-1 mainframe analog digital switch matrix router
G2T6-D100-1
6 -100 (+5V,+15V, -15V) Yes No Yes 3RU G2T600-D100-1 mainframe analog digital switch matrix router
G2T6-S200-1
6 -200 (+5V,+5V, -5V) No No Yes 3RU G2T600-S200-1 mainframe analog digital switch matrix router
G2T6-D200-1
6 -200 (+5V,+5V, -5V) Yes No Yes 3RU G2T600-D200-1 mainframe analog digital switch matrix router
G2T6-S207-1
6 -207 (+5V,+7V, -5V) No No Yes 3RU G2T600-S207-1 mainframe analog digital switch matrix router
G2T6-D207-1
6 -207 (+5V,+7V, -5V) Yes No Yes 3RU G2T600-D207-1 mainframe analog digital switch matrix router
G2T6-S600-1
6 -600 (+5V,+15V, N/A) No No Yes 3RU G2T600-S600-1 mainframe analog digital switch matrix router
G2T6-D600-1
6 -600 (+5V,+15V, N/A) Yes No Yes 3RU G2T600-D600-1 mainframe analog digital switch matrix router
G2T12-S100-1
12 -100 (+5V,+15V, -15V) No No Yes 6RU G2T1200-S100-1 mainframe analog digital switch matrix router
G2T12-D100-1
12 -100 (+5V,+15V, -15V) Yes No Yes 6RU G2T1200-D100-1 mainframe analog digital switch matrix router
G2T12-D100-2
12 -100 (+5V,+15V, -15V) Yes Yes Yes 6RU G2T1200-D100-2 mainframe analog digital switch matrix router dual cpu
G2T12-S200-1
12 -200 (+5V,+5V, -5V) No No Yes 6RU G2T1200-S100-1 mainframe analog digital switch matrix router
G2T12-D200-1
12 -200 (+5V,+5V, -5V) Yes No Yes 6RU G2T1200-D200-1 mainframe analog digital switch matrix router
G2T12-D200-2
12 -200 (+5V,+5V, -5V) Yes Yes Yes 6RU G2T1200-D200-2 mainframe analog digital switch matrix router dual cpu
G2T012-S207-1
12 -207 (+5V,+7V, -5V) No No Yes 6RU G2T1200-S207-1 mainframe analog digital switch matrix router
G2T12-D207-1
12 -207 (+5V,+7V, -5V) Yes No Yes 6RU G2T1200-D207-1 mainframe analog digital switch matrix router
G2T12-D207-2
12 -207 (+5V,+7V, -5V) Yes Yes Yes 6RU G2T1200-D207-2 mainframe analog digital switch matrix router dual cpu
G2T12-S600-1
12 -600 (+5V,+15V, N/A) No No Yes 6RU G2T1200-S600-1 mainframe analog digital switch matrix router
G2T12-D600-1
12 -600 (+5V,+15V, N/A) Yes No Yes 6RU G2T1200-D600-1 mainframe analog digital switch matrix router
G2T12-D600-2
12 -600 (+5V,+15V, N/A) Yes Yes Yes 6RU G2T1200-D600-2 mainframe analog digital switch matrix router dual cpu
G2T16-S100-1
16 -100 (+5V,+15V, -15V) No No Yes 8RU G2T1600-S100-1 mainframe analog digital switch matrix router
G2T16-D100-1
16 -100 (+5V,+15V, -15V) Yes No Yes 8RU G2T1600-D100-1 mainframe analog digital switch matrix router
G2T160-D100-2
16 -100 (+5V,+15V, -15V) Yes Yes Yes 8RU G2T1600-D100-2 mainframe analog digital switch matrix router dual cpu
G2T16-S200-1
16 -200 (+5V,+5V, -5V) No No Yes 8RU G2T1600-S200-1 mainframe analog digital switch matrix router
G2T16-D200-1
16 -200 (+5V,+5V, -5V) Yes No Yes 8RU G2T1600-D200-1 mainframe analog digital switch matrix router
G2T16-D200-2
16 -200 (+5V,+5V, -5V) Yes Yes Yes 8RU G2T1600-D200-2 mainframe analog digital switch matrix router dual cpu
G2T16-S207-1
16 -207 (+5V,+7V, -5V) No No Yes 8RU G2T1600-S207-1 mainframe analog digital switch matrix router
G2T16-D207-1
16 -207 (+5V,+7V, -5V) Yes No Yes 8RU G2T1600-D207-1 mainframe analog digital switch matrix router
G2T16-D207-2
16 -207 (+5V,+7V, -5V) Yes Yes Yes 8RU G2T1600-D207-2 mainframe analog digital switch matrix router dual cpu
G2T16-S600-1
16 -600 (+5V,+15V, N/A) No No Yes 8RU G2T1600-S600-1 mainframe analog digital switch matrix router
G2T16-D600-1
16 -600 (+5V,+15V, N/A) Yes No Yes 8RU G2T1600-D600-1 mainframe analog digital switch matrix router
G2T16-D600-2
16 -600 (+5V,+15V, N/A) Yes Yes Yes 8RU G2T1600-D600-2 mainframe analog digital switch matrix router dual cpu
