Software &
Drivers

Since 1992, Universal Switching Corporation has continued to develop new and exciting system control features and protocols. By continuing to further develop our command and control protocol, we build continuity between our older legacy products and our newly developed products.

This integrated control protocol philosophy applies to our acquired legacy M-Line products (formerly Matrix Systems Corporation) as well. Additionally, we can provide backwards compatible drivers or protocols for other manufactures such Racal, ETL Systems, VTI Instruments, Cytec, Datachron, Hewlett Packard, Cornet, and Apogee Labs. We make it easy to transition up from other platforms so you can reuse old code.

Plug-in C3 Control CPU Information

Programmers Guide (ICD)

Shown on the right are four main methods to remotely control our products.

Remote Control Choices For
Universal Switching Products

Routwarepro control and monitor software GUI ETL systems cytec cornet datachron apogee labs

RouteWarePRO 5.0

With our control and monitor software, you can control one "switch box" or many by simply selecting the "box" to be controlled from a menu. GUI colors, channel labeling and configuration uploads are all user definable. Be up and running in minutes, plus a 30 free trial.

Read more

Plug-in C3 Control CPU Information










programmers guide universal switching driver

Program Your Own Code

Switching and distribution systems are utilized in many industries and for an unlimited number of applications worldwide. Many times, our equipment is just one small piece in a larger system where custom system software controls and monitors many types of equipment. Our Interface Control Document (ICD) is below.

Programmers Guide (ICD)






universal switching web browser control and monitor driver

Built-in Web Browser

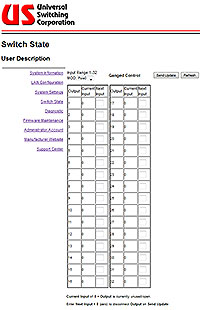

Units that ship with our C3 Controller CPU (or variant) can utilize a built-in web browser feature to setup, control and monitor the unit. The web browser utilizes a subset of the features available via the full remote control protocol. An example screen of the "Switch State" page is shown to the left for a 32x32 matrix.

To see what the built-in Web GUI looks like, we have a factory unit online for you to use and explore. It can also be used to demo our RouteWarePRO monitor and control software, or to test your own coad too. Some features have been disabled for security purposes.

Factory Online Demo Unit

User: admin
Password: secret












universal switching visa driver

Use LabVIEW VISA Driver

Switching and distribution systems are utilized in many industries and for an unlimited number of applications worldwide. Many times, our equipment is just one small piece in a larger system where custom system software controls and monitors many types of equipment.

VISA Driver (zipped folder)

NI website
