RouteWarePRO 3.0
Professional Control GUI Software
Version 3.0

Download PDF file Specification Sheet
Download PDF file Operations Manual

Free 30-Day Fully
Functional Version 3.0
Download
(info)


59Meg
Preview the EULA

Our new RouteWarePRO 3.0 delivers a comprehensive and robust control/status GUI application simplifying your control needs of our switching systems. This is a cost effective and flexible solution to providing a customizable means of automating your Universal Switching Corporation (USC) system right out of the box. RouteWarePRO 3.0 contains many important new features and improvements that have been driven by both client feature requests and planned USC hardware/software improvements.

  What is RouteWarePRO?

Our software product called RouteWarePRO is a self-contained graphical interface software package designed specifically to control and monitor Universal Switching Corporation's products. Designed for ease of use, most users are up and running in minutes. The user can control one "switch box" or many by simply selecting the "box" to be controlled from a menu. GUI colors, channel labeling and configuration uploads are all user definable.

  New features for Version 3.0

  • Sophisticated "auto-discovery" of available network attached USC hardware devices simplifies initial application setup
  • Sort input and outputs by I/O number or by user channel/port names
  • Fully scalable user windows for easy viewing of larger configurations
  • "On the fly" input and output naming (channel or part names) within RWP3
  • Integrated screen color picker to customize "panels" for desired effects
  • Multiple user OS support for different users on the same work station can either share settings and I/O names, or have custom program settings for their login
  • Improved status with more indicators, plain English responses and handy tool hints
  • Multiple instance support to operate multiple devices or device "panels" from a single computer
  • Interlock control to prevent accidental user disconnects
  • System diagnostic report generation for streamlining support of connected USC devices

  Additional Standard Features (also see new features for Version 3.0 shown above)

  • Fully functional 30-day free trial download (try and buy)
  • Popular interfaces supported with TCP/IP
  • Underlying 488.2 compliant control protocol
  • User configurable channel naming
  • Quick and easy initial startup
  • User configurable screen colors and labeling
  • Store and Recall configurations on-the-fly
  • Easy to view connectivity lists
  • Industry standard InstallShield install and uninstall
  • Informative real-time status and information screens
  • Control multiple units from one application
  • Activity logging feature to log all activity
  • Configuration printing or viewing
  • Simple license registration online
  • Add or Delete "batch" connections

  Example Screens

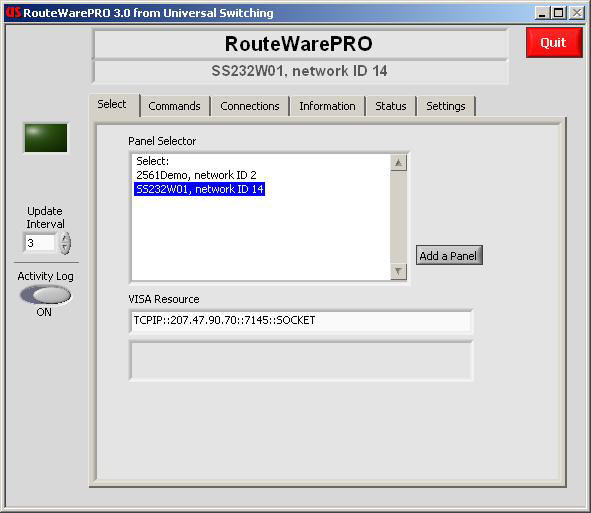

Below is an example screen. This is the "Select" tab. This is the first tab you are brought to when the  application starts. It is also where you select or add a panel or device you want to control.



Select Screen
Click a tab for large popup screen


  Compatibility with USC Switching Products


Product

Compatible

Series G2 Yes *
USmod No
S2084E Yes
S2560E Yes
S2561E Yes
S2562E Yes
S6025E Yes
G2-CAS Yes
VME No
VSU1/DVSU1 Yes
VXI No

* NOTE: Older Series G2 products with the legacy C700 type
             system CPU are not compatible. Units with
             the C710, C720 or C820 or newer are compatible.



  Standard Interfaces Supported


Interface

Compatible

Ethernet Yes
GPIB Yes
IEEE-1394 No
RS-232C Yes
RS-422A Yes
RS-485 Yes
USB No

  FREE Trial Period

Simply download and install the software for a fully functional software evaluation FREE for 30 days. If you want to keep operating the software installation, you may purchase the license to continue operating the software and qualify for future for updates. Email or call our sales department for license activation or product quotation. Multi-seat versions provide a discount.

  Upgrade for 2.42 (and lower) users

Customers are our most valuable source of product feedback, which is why we rely on your input to develop new versions of RouteWarePRO. With RouteWarePRO-3.0, you receive powerful new features as well as significant enhancements to areas of the product you use everyday.  This enables you to operate more effectively and become that much more productive. Email or call our sales department for license activation or product upgrade quotation.




NOTE: Universal Switching Corporation's policy is one of continuous product  development and improvement. Consequently, the company reserves the right to vary from the descriptions and specifications stated herein.
