Redundancy Switching Products
Critical for Communication Installations

Many communication installations require built-in redundancy should an equipment failure occur. To support this need, we offer eight different feature rich 1RU redundancy switching products spanning IF signals, L-Band, C-Band and others to 40GHz. Some of these units can be used for 1:1 redundancy, or for more cost effective installations, 1:4 redundancy mode can be selected.

Main Features

• Compact size (1RU)
• Four different control types
• Direct TTL alarm input port
• Redundant priority assignment
• High reliability and quality
• High contrast 1x20 VF display
• Light-weight modular construction
• Redundant Hot-Swap power supplies
• Flexible firmware to configure system
• Advanced control and status features
• Intelligently LED illuminated controls
• Lithium-backed RAM stores configurations
• Dual serial control ports for redundant controllers
• Additional programmable driver port to control external devices

Model	Spec Sheet	Unit Height	Frequency Range	Control	Configuration
10942B-D485		1RU	DC-500MHz (IF Bands)	Dual Serial Front Panel Alarm Inputs	4-channel 1:1 or 1:4 redundancy
10942B-SE10		1RU	DC-500MHz (IF Bands)	1-Serial 1-Ethernet Front Panel Alarm Inputs	4-channel 1:1 or 1:4 redundancy

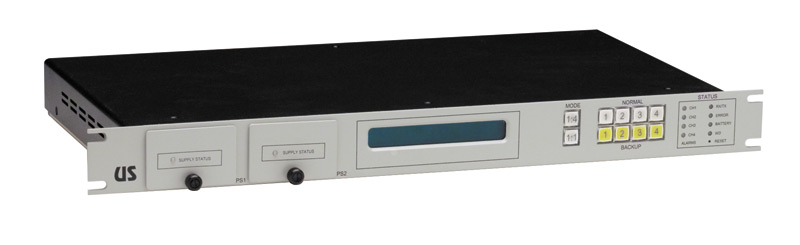

10943B-D485		1RU	DC-2.4GHz (L-Band)	Dual Serial Front Panel Alarm Inputs	4-channel 1:1 or 1:4 redundancy
10943B-SE10		1RU	DC-2.4GHz (L-Band)	1-Serial 1-Ethernet Front Panel Alarm Inputs	4-channel 1:1 or 1:4 redundancy
10946B-D485		1RU	DC-6GHz (L & C Band)	Dual Serial Front Panel Alarm Inputs	4-channel 1:1 redundancy Transfer or 2x1
10946B-SE10		1RU	DC-6GHz (L & C Band)	1-Serial 1-Ethernet Front Panel Alarm Inputs	4-channel 1:1 redundancy Transfer or 2x1
10948B-D485		1RU	DC-18GHz *	Dual Serial Front Panel Alarm Inputs	4-channel 1:1 redundancy Transfer or 2x1
10948B-SE10		1RU	DC-18GHz *	1-Serial 1-Ethernet Front Panel Alarm Inputs	4-channel 1:1 redundancy Transfer or 2x1

* Unit is also available in 40GHz version. See data sheet for details.
