S2561E digital analog switching matrix system S2561E digital analog switching matrix system

S2561F Example Configurations

Versatile and flexible, the S2561F unit is shown in various configurations below. Each is pictured using adapter panels for the I/O connections. These panels can be co-located with the system, located up to 60 feet away or a mix. It should be noted that a simple menu setting on the unit changes operation from stand alone, to be logically split in half (dual 128x128), or a part of a larger configuration.

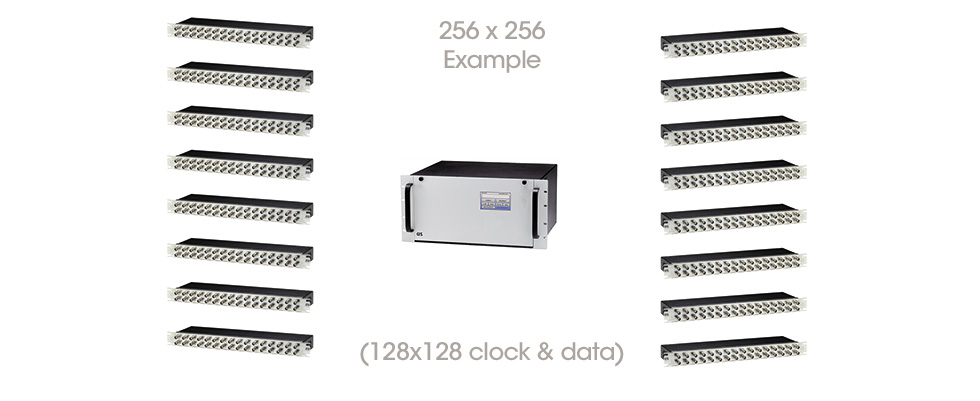

Example 1: Single S2561F full configuration as 256x256 (or dual 128x128)
S2561E clock and data switching matrix system

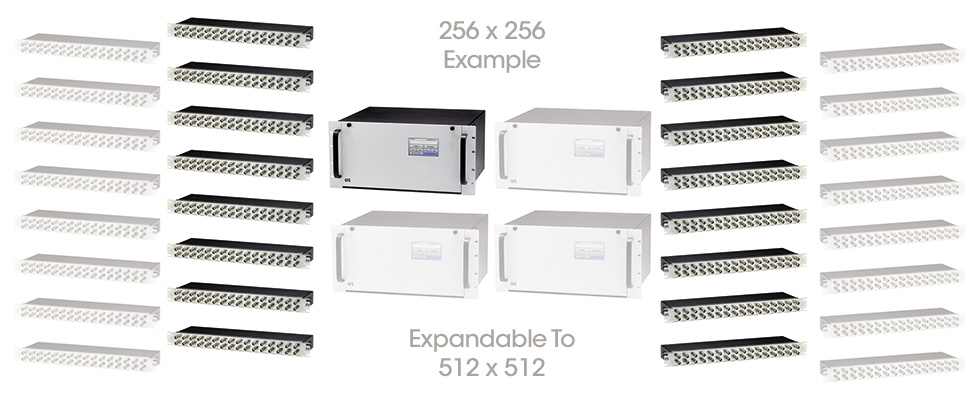

Example 2: Shows what equipment needs to be added to change 256x256 to a 512x512 (shaded)
S2561E digital analog switching matrix system

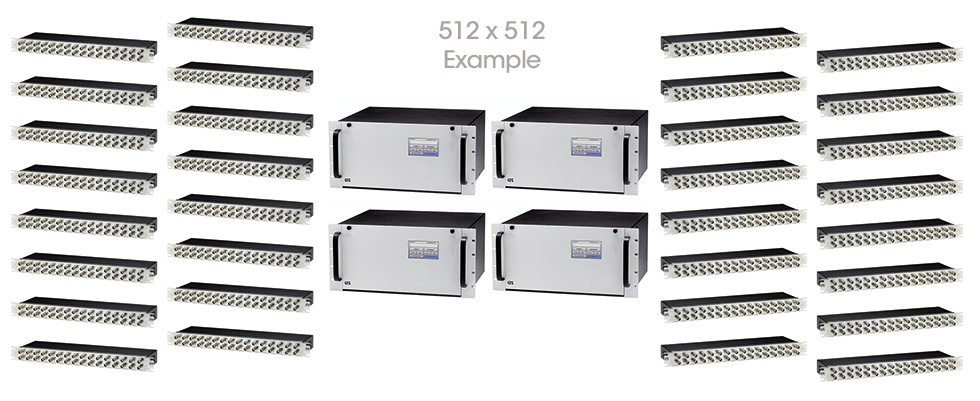

Example 3: Shows a fully functional 512x512 configuration
S2561E digital analog switching matrix system

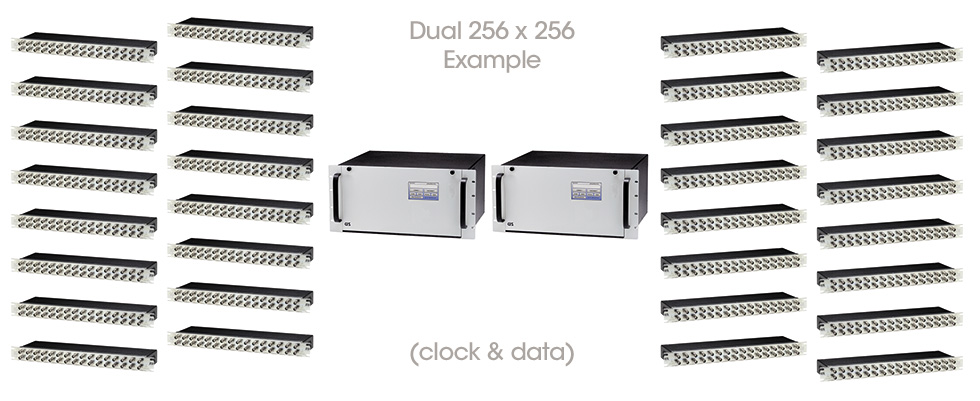

Example 4: This is a dual 256x256 for applications like Clock & Data (synchronous)
S2561E clock and data digital analog switching matrix system
