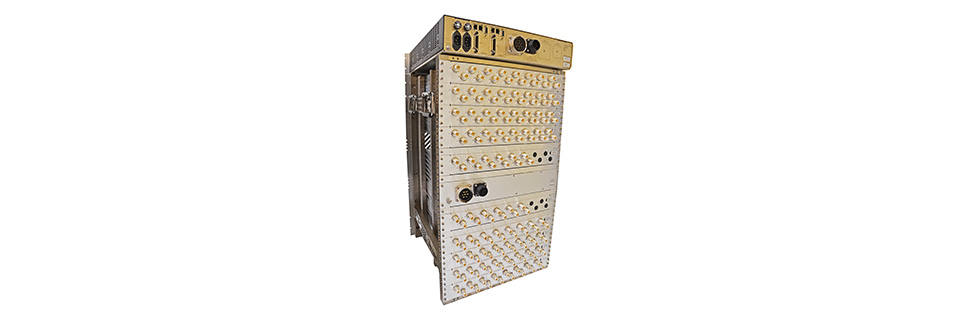

G2T-CAS

The G2T-CAS is a high performance modular signal platform for critical applications where low downtime, high performance, modularity and maintainability are of paramount importance.

Intended for automating manual patch cords, or replace bulky and dated competitive products, this product line supports any signal within the DC-30GHz frequency including digital and analog. Our proprietary elegant and sophisticated rack-mount packaging gives you the performance and maintainability you demand.

Each configuration is factory configured. The design construction makes it simple to build for custom or special requirements. Our technical staff can help configure the exact system to meet your specific application. Contact the factory.

Features

  • High reliability solid-state or relay elements available
  • Flexible and scalable configuration design
  • Low MTTR (ALL active items removable via front)
  • Capable of analog and digital switching
  • DC to 30GHz design supported

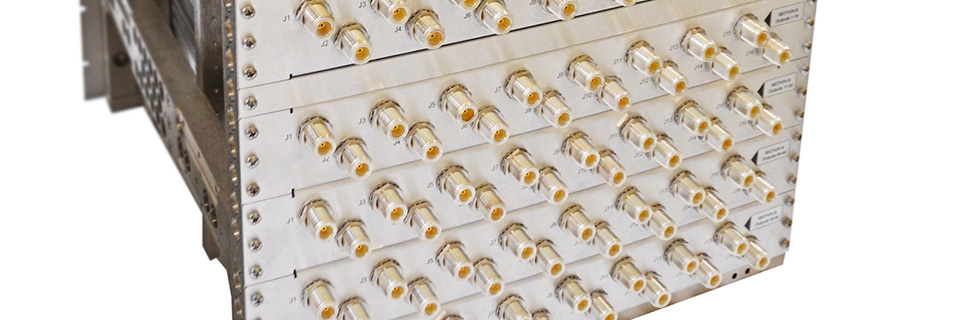

  • SMA or N-Type signal connectors (or others)
  • Ultra-high density switch design
  • Hot-Swap module technology
  • Configurations from 16x16 to 128x256
  • Built-in web browser
  • Firmware updates via Ethernet (web)

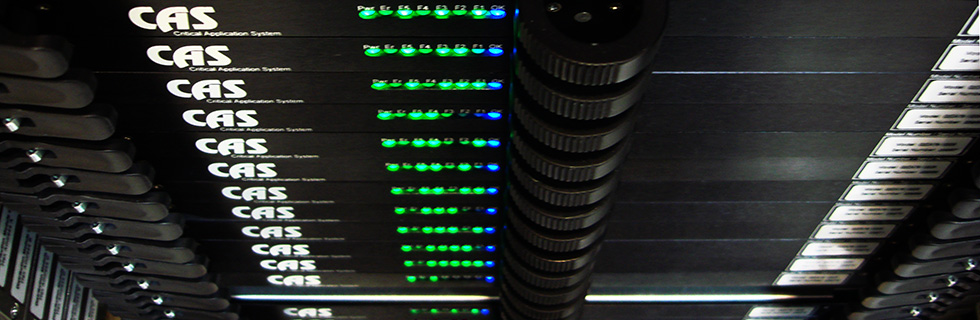

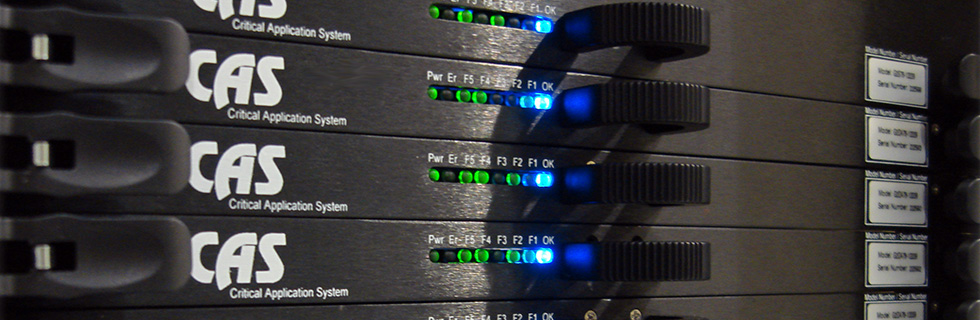

  • Individual module status displays
  • Monitored cooling fans and internal temps

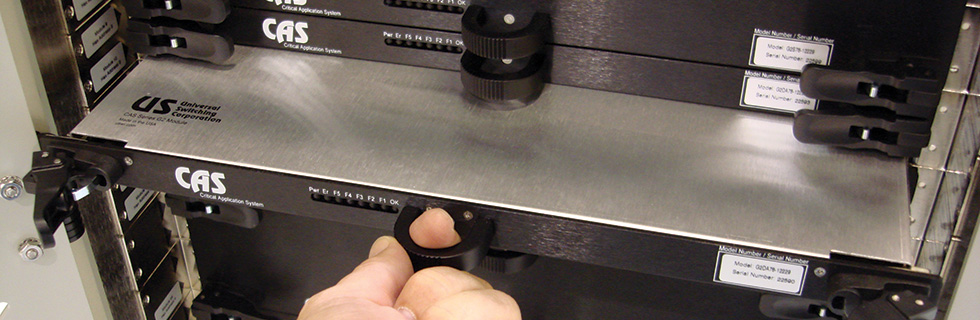

  • All modules hot-swappable via the hinged front panels
  • ”One-Time” user cable routing design
  • Front panel capacitive color touchscreen
  • Many options available: variable gain, reroute, fiber
  • Dual hot-swap CPU capability
  • Includes Ethernet (TCP/IP, SNMP), serial and USB
  • LXI 10/100 Ethernet with TCP/IP, SNMP, IPv4, IPv6
  • Command set is 488.2 compliant
  • Rugged aluminum/steel chassis construction
  • International AC power range
  • Self-monitoring hot-swap plug-in supplies with PFC
  • Built-in rack mount design (19 inch)
  • Built-in chassis slide mounting (slides optional)
  • Certified CE EN61010 (LVD)
  • LabVIEW VISA drivers
  • RouteWarePRO software GUI included

    Applications

    Our G2T-CAS is designed to automate connectivity coaxial signals spanning the DC-30GHz range. Rather than using patch cords, the following installations may benefit from use of this product:

  • Automated test equipment (ATE)
  • Antenna patching
  • ENG trucks
  • Ground stations
  • Telecom equipment
  • Uplink or downlink antenna feeds
  • Communication centers
  • Satellite installations
  • Specialized security devices
  • Encryption and decryption equipment

    • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    Critical Application System (CAS) Modular Unit
    Supports Fan-OUT or Fan-IN up to 128x256

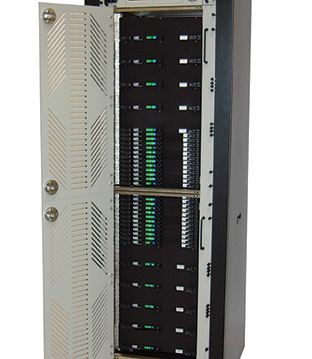

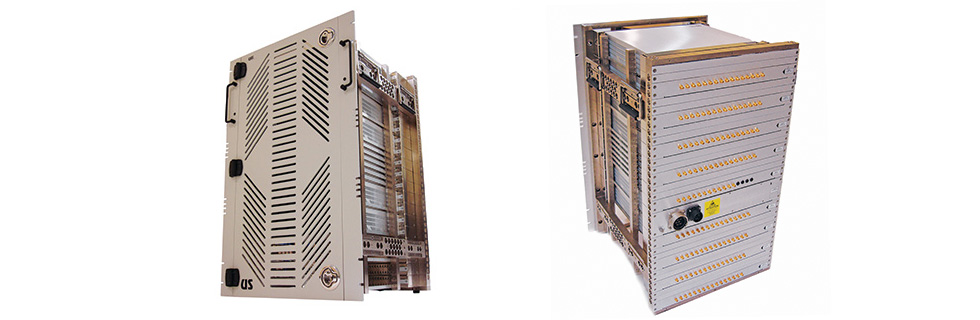

    G2T-CAS dual system

    Detailed Description

    Eliminating manual patch bays and patch cords, this flexible design provides a host of features not seen on other "rubber-stamp" switching manufacturers. The design is most efficient when used in "asymmetrical" matrix applications, meaning that one axis of the matrix is smaller than the other (12x128, 256x16, etc). Also, multi-level data or Nx1 applications are well suited for the unique G2T-CAS.

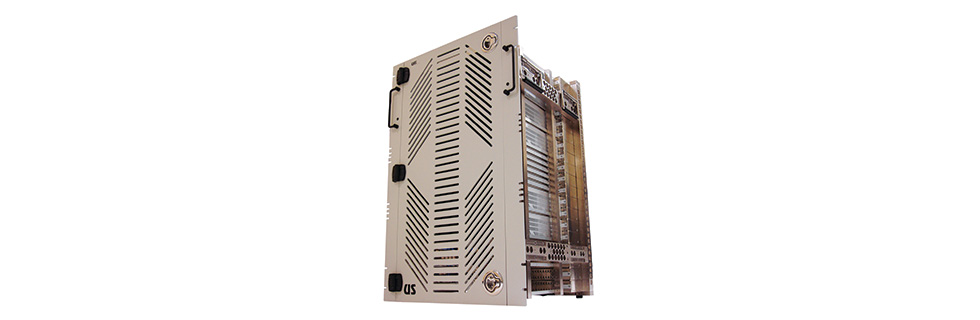

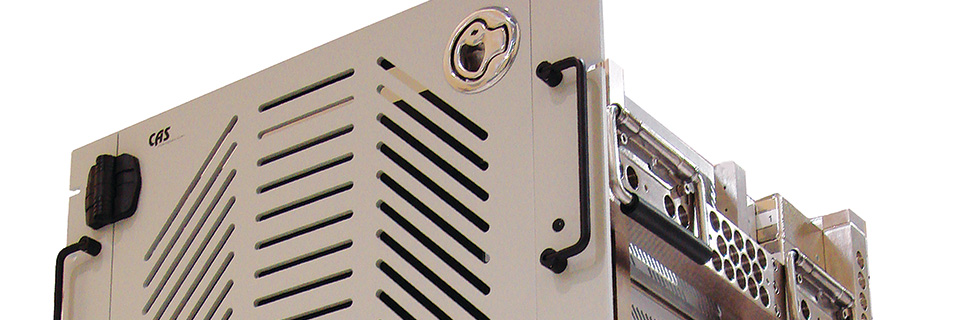

    Quality hardware is used throughout the manufacture and design of the G2T-CAS products. Since customers demand the best for their critical application, hinged front panels with detents, folding handles, venting and all aluminum and nickel-plated steel construction is provided.

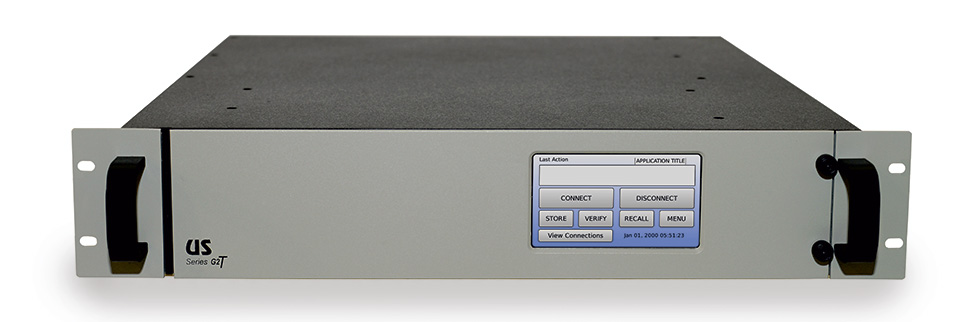

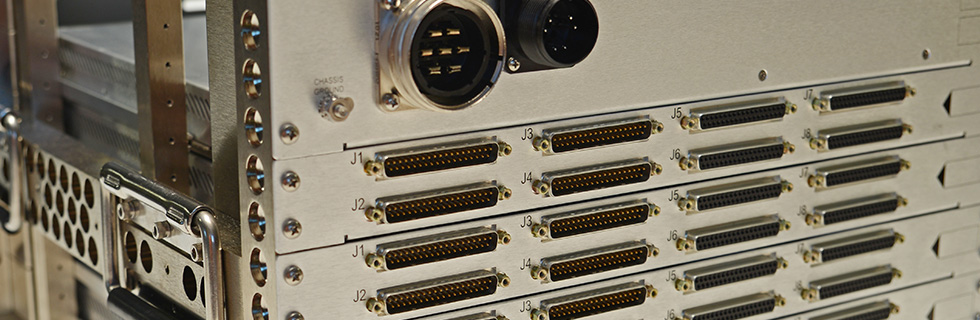

    A typical “system” is comprised of two (or more) rack mount units. The smaller 2RU rack-mount “controller/power” head unit contains self-monitoring hot-swap power supplies and up to two hot-swap
    control CPU units. The supplies and the CPU’s are accessed from the hinged front panel. No rear access is needed once the unit is installed.

    The unit is configured with up to two plug-in CPU (behind the hinged front panel) where each includes an LXI 10/100 Ethernet port (with web browser), a USB 2.0 port, and a muli-serial port (RS-232C, RS-422A & RS-485). Two sets of control ports are at the rear panel. Self-monitoring hot-swap plug-in power supplies (behind the hinged front panel) are standard with an independent and redundant design. The unit has dual AC power input designed for any international AC power source.

    Control Software & Drivers

    Plug-in C3 Control CPU Information

    RouteWarePRO Control GUI



    What's Included

    The G2T-CAS units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System
  • Two 6'-foot power cords
  • Resource disc
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates

    •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included.
