MS2010A Coaxial RF Switch Matrix (18GHz) MS2010A Coaxial RF Switch Matrix Front Panel (18GHz) MS2010A Coaxial RF Switch Matrix Rear Panel (18GHz) MS2010A Coaxial Relay Element XMA2010A-005

System
MS2010A

System MS2010A is a high performance DC-18GHz coaxial blocking matrix designed for high reliability, very low MTTR, and is available in configurations from 4x4 to 12x12 in an elegant & compact 2RU unit.

Intended for automating manual patch cords, or replace bulky and dated competitive products, this unit is designed for switching any coaxial signal within the DC-18GHz frequency. Our new proprietary high reliability relay element coupled with our elegant and sophisticated rack-mount packaging gives you the performance and maintainability you demand.

MS2010A units provide excellent signal performance with low crosstalk isolation, good phase matching, high isolation and low signal loss specifications. These rugged units are both compact and cost-effective. They provide the systems engineer with one of the best integrated solutions for reliably routing a wide range of coaxial signals. Each input can be connected to only one output at a time (no fanout, only 1:1 connections).

NOTE: Although it is available in standard configurations, the internal design construction makes it simple to build for custom or special requirements. Our technical staff can help configure the exact system to meet your specific application. Contact the factory.

Features

  • High reliability hot-swap relay technology
  • Low MTTR (<3 minutes field replaceable relays)
  • DC to 18GHz bandpass (min)
  • SMA signal connectors, N-Type optional
  • Full access matrix with 1:1 connectivity
  • Built-in coil current monitoring
  • Integrated individual relay usage log
  • Monitored cooling fans and internal temps
  • Configurations from 4x4 to 12x12
  • Built-in web browser
  • RouteWarePRO 30-day free trial
  • Remote control Ethernet, USB & serial ports
  • LXI 10/100/1G Ethernet with TCP/IP, SNMP, IPv4, IPv6
  • Command set is 488.2 compliant
  • Front panel color touchscreen display
  • Rugged 2RU high chassis (3.50”)
  • International AC power range
  • Self-monitoring hot-swap plug-in power supplies
  • Optional input and/or output terminations
  • Optional input and/or output "looping" ports
  • Integrated rack mount design (19 inch)
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    Our MS2010A is designed to automate connectivity coaxial signals spanning the DC-18GHz range. Rather than using patch cords, the following installations may benefit from use of this product:

  • Automated test equipment (ATE)
  • Antenna patching
  • ENG trucks
  • Ground stations
  • Telecom equipment
  • Uplink or downlink antenna feeds
  • Communication centers
  • Satellite installations
  • Specialized security devices
  • Encryption and decryption equipment

  • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    High Performance DC-18GHz Modular Matrix
    Sizes 4x4 to 12x12 - Blocking (1:1) - Low MTTR

    S64530 digital rs530 switching hotswap DCE and DTE matrix system

    Detailed Description

    Eliminating manual patch bays and patch cords, the System MS2010A is a compact high-performance modular switch matrix specifically designed for routing any coaxial signal within the DC-18GHz bandpass. Configurations are available from 4x4 to 12x12, and custom configurations are a simple to accomplish.

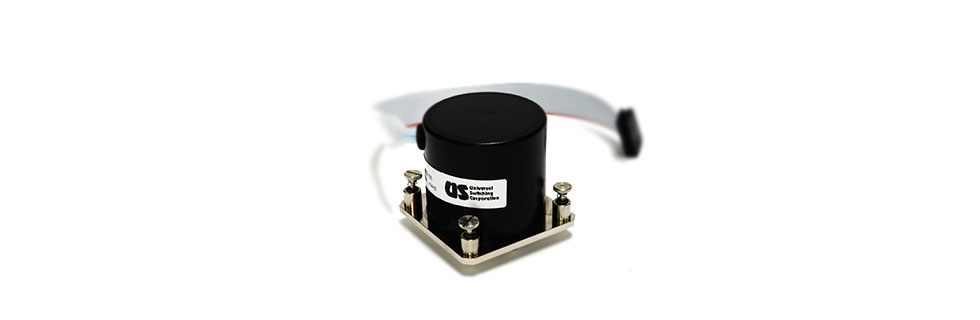

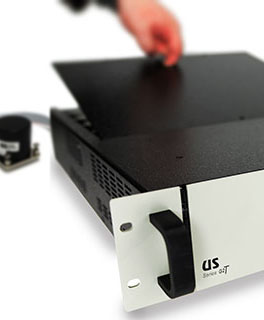

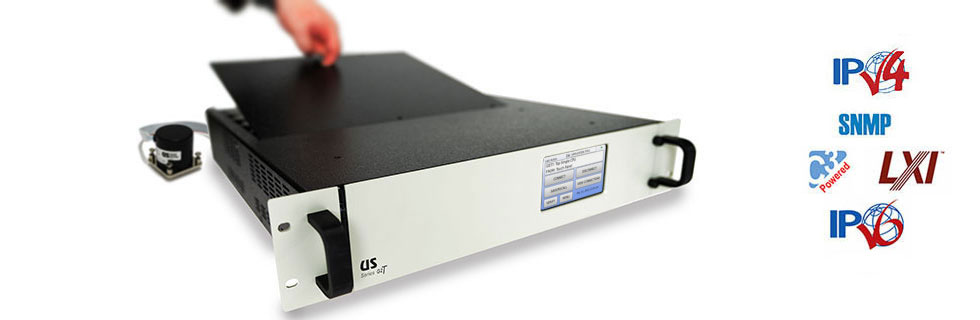

    Enjoy the known benefits of mechanical relay elements without worry of relay-life, or hassle of maintenance. Our new proprietary high reliability relay element coupled with our elegant and sophisticated rack-mount design gives you the performance and maintainability you demand. Built-in coil current monitoring and individual relay actuation logs provide health and usage data for preventative maintenance planning. A relay element can be replaced while the unit is in use, and in about 1-2 minutes with just a screwdriver delivering low MTTR (Mean Time To Repair).

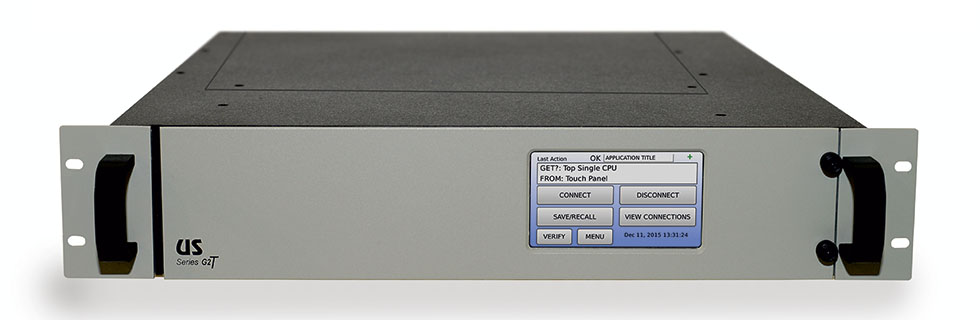

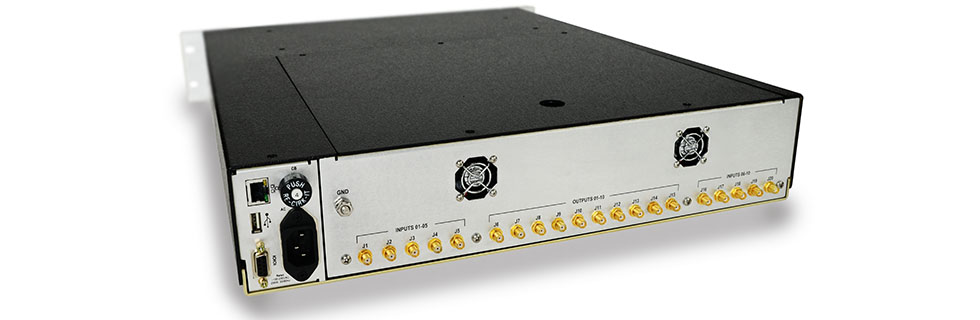

    The 2RU rack mount unit provides user connectivity with SMA signal connectors at the rear of the unit, with N-Type connectors being optional. The front panel includes a color touchscreen display with user friendly menu driven operation to configure or control the unit locally. The display may be pass-code locked to prevent unintentional operation.

    The unit is configured with a plug-in CPU (behind the hinged front panel) that includes an LXI 10/100/1G Ethernet port (with web browser), a USB 2.0 port, and a muli-serial port (RS-232C, RS-422A & RS-485). Control connections are at the rear panel. Self-monitoring hot-swap plug-in power supplies (behind the hinged front panel) are standard with an independent and redundant design. The unit has a single AC power input designed for any international AC power source.

    Control Software & Drivers

    Plug-in C3 Control CPU Information

    RouteWarePRO Control GUI



    What's Included

    The MS2010A units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System MS2010A
  • One 6'-foot power cord
  • Resource disc (#RDMS2010A)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates
  •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
