SGM24 wideband 20-6000MHz 48-port switch matrix SGM24 wideband 20-6000MHz 48-port switch matrix

System
SGM24

System SGM24 is a compact 2RU ultra-wideband switch matrix unit designed for high-performance, cost effective and reliable signal routing. Factory configured with a maximum of 48 I/O ports, a typical configuration is an asymmetrical 16x32. It can also be ordered with symmetrical configuration as well such as a 24x24. It's designed to replace and automate a set of multi-coupler and manual patch cord bays or switches.

The unit is available in a distributive Fan-OUT version (SGM24). The unit is able to have input have individual programmable input gain control in 1/2dB steps. Contact the factory for details on this option.

NOTE: Although it is available in standard configurations, the internal construction makes it simple to make factory builds for custom or special requirements. Our technical staff can help configure the exact system to meet your specific application. Contact the factory.

Features

  • High reliability GaAs switch technology
  • SMA connectors
  • Available in 50 ohm (standard)
  • Full access matrix with Fan-OUT

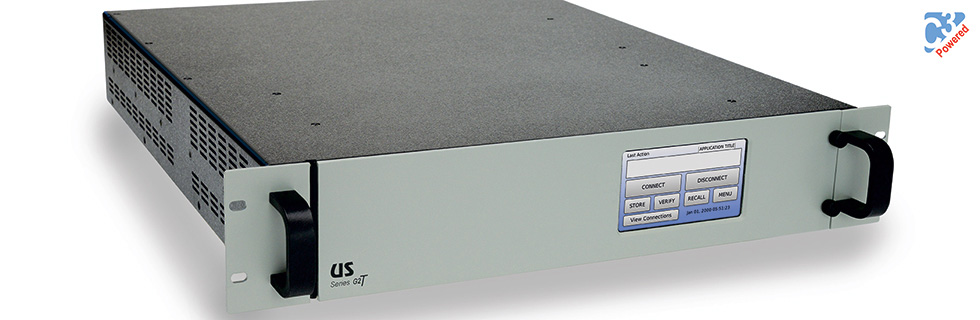

  • Front panel touchscreen display and control
  • Remote control with Ethernet 10/100/1G and Serial
  • LXI 10/100/1G Ethernet includes TCP/IP, SNMP, IPv6
  • Command set is 488.2 compliant
  • Built-in web browser capability
  • Comes with one license of RouteWarePRO
  • Variable input gain (optional)
  • Rugged 2RU high chassis (3.5”)
  • International AC power range
  • Self-monitoring hot-swap redundant power supplies
  • Integrated rack mount design (19 inch)
  • Built-in chassis slide mounting (slides not included)
  • Certified CE EN61010 (LVD)
  • Applications

    The SGM24 is wideband, and so it can be implemented to automate connectivity of signals across the whole 20-6000MHz bandpass. Instead of using patch cords and multi-couplers, the following installations may benefit from use of this product:

  • Satellite ground stations
  • Uplink or downlink control signals
  • Teleport and last mile installations
  • Communication centers
  • Satellite installations
  • Specialized security installations
  • Modem Tx and Rx connectivity and encryption

  • S24530 digital pin assignment DCE and DTE matrix system

    Similar Products

    Ultra-Wideband Fan-OUT Switch Matrix
    (20MHz-6000MHz) 16x32 or 24x24 Fan-OUT

    SLM16 front panel matrix

    Detailed Description

    Sometimes eliminating multi-couplers, manual patch bays and patch cords, the System SG24 is a solid-state switch array specifically designed for routing and distributing ultra-wideband signals. Factory configured, the unit typically provides a symmetrical switch configuration up to 24 input ports and 24 output ports, or 16x32 (48 ports total).

    The standard configuration is optionally availablle with individual programmable input gain control in 1/2dB steps. Many other options are available as your requirement demands.

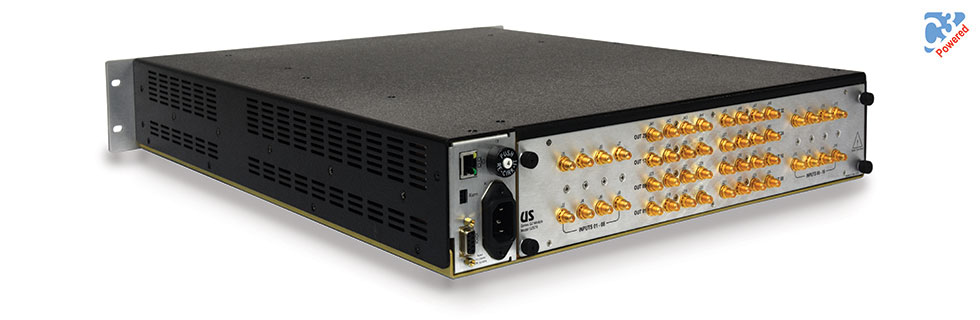

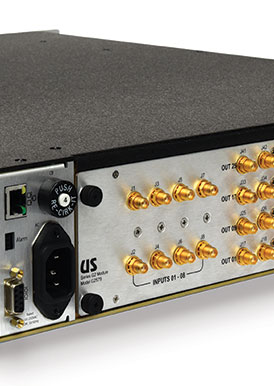

    The 2RU rack mount unit is available standard with 50 ohm impedance with SMA  connectors. All signal I/O connections are located at the rear panel. Designed for remote control, the built-in web browser interface and front panel touchscreen provides simple and trouble free operation.

    The unit has monitored built-in redundant hot-swap power supplies and features international AC power input (DC power input optional).

    Satellite RF Chain Diagram (PDF)

    Control Software & Drivers

    RouteWarePRO Control GUI



    What's Included

    The SWM24 units are delivered complete, 100% tested, and ready for installation & integration. The following items are included:

  • System SGM24
  • A single 6'-foot power cords
  • Resource disc (#RDSGM24)
  • Hardware accessory kit
  • Warranty registration card
  • Free lifetime technical support
  • Free lifetime firmware updates
  •

    Care should be given to the Resource Disc as this has all documentation and instructions. Electronic copies of the Operations Manual and Programmers Guide are included, as well as RouteWarePRO control and monitoring software with a 30-Day free trial.
