Series G2
1xN Switching Products

The product selection table below offers an easy way to select which switch matrix product might be used for your particular application. Please keep in mind that our Series G2 is being expanded monthly with new module types, and that we also do custom or modified types as well.

• Go to Series G2 Main Page

• Go to Series G2T Mainframes

• Go to Series G2 "MxN" Modules

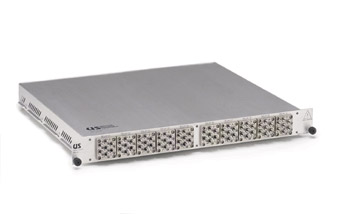

Relay-based  G2R22 Switching Module with
ten 6x1 relay section configuration, SMA
connectors, high density, DC-18GHz

Question: What's a 1xN type of module?

1xN Modules
Sorted by increased frequency range.

Type	Spec Sheet	Module Slot Height	Frequency Range	Connector Type	Switching Array Type	Description
G2S08		3	DC-440Hz	Screw Terminal	Bi-directional, AC or DC from 1x1 to 1x8	Solid-state high current power switching for AC and DC circuits.
G2R06	-001 -002 -003	1	DC-10MHz	D-Sub	Two-wire general purpose passive switching for ATE, audio or DC power	Relay module three basic configurations. See data sheets.
G2R16		1	DC-1.3GHz	BNC SMA TNC	Single-ended general purpose analog array, multiple 1x2 to 1x16	Coaxial switching module with normally open contacts, 50 or 75 ohm (BNC, SMA or TNC connectors available)
G2R16T		1	DC-1.3GHz	BNC SMA TNC	Single-ended general purpose analog array, multiple 1x2 to 1x16	Coaxial switching module with self-terminating contacts, 50 or 75 ohm (BNC, SMA or TNC connectors available)
G2R15	-001 -002	1	DC-3GHz	SMA or BNC	Single-ended general purpose analog array, multiple 1x2 to 1x16	Coaxial switching module with or without self-terminating contacts, 50 or 75 ohm (SMA  connectors optional)
G2R12		4	DC-10.5GHz	N-Type	Single-ended, normally open, from one 1x3 to five 1x6's	Coaxial switching module without self-terminating contacts, high power with N-type connectors, 50 ohm
G2R20	NA	4	DC-12.5GHz	N-Type	Single-ended, normally open, up to four 1x2 and two 1x6 sections (can be configured as a 4x2 matrix)	Coaxial switching module without self-terminating contacts, 50 ohm
G2R14	-001  -002	4	DC-18GHz	SMA	Single-ended, normally open, from one 1x3 to five 1x6's	Coaxial switching module with self-terminating (3W)  contacts, 50 ohm
G2R17		3	DC-18GHz	SMA	Single-ended transfer configuration (A/B), from 1-8 sections	Coaxial switching module with A/B transfer capacity, 50 ohm
G2R18		3	DC-18GHz	SMA	Single-ended, normally open, from one 1x3 to seven 1x6's	Coaxial switching module without self-terminating contacts, 50 ohm
G2R21	NA	2	DC-18GHz	SMA	Single-ended, up 8 failsafe 1x2's and 4 transfer relays	Coaxial switching module without self-terminating contacts, 50 ohm
G2R22		2	DC-18GHz	SMA	Single-ended, normally open, from one 1x3 to ten 1x6's	Super-compact coaxial switching module without self-terminating contacts, 50 ohm
G2R27	NA	5	DC-18GHz	SMA	Single-ended, from one 1x8 to four 1x10's	Coaxial switching module with self-terminating (3W) contacts, 50 ohm
G2R28	NA	3	DC-18GHz	SMA	Single-ended, from one 1x10 to seven 1x10's	Coaxial switching module without self-terminating contacts, 50 ohm
G2R25		2	DC-26GHz	SMA	Single-ended, failsafe, from one 1x2 to  sixteen 1x2's	Coaxial switching module without self-terminating contacts, 50 ohm
G2R26		3	DC-26GHz	3.5mm	Single-ended, normally open, from one 1x3 to seven 1x6's	Coaxial switching module without self-terminating contacts, 50 ohm
G2R40		3	DC-40GHz	K-Type	Single-ended, normally open, from one 1x3 to seven 1x6's	Coaxial switching module without self-terminating contacts, 50 ohm
G2F08	NA	2	1300-1550nm	SC, FC	Multiple latching 1x2 elements, up to eight in one 2-slot module	MEMs fiber optic switches
