System S2084D:
High Density Modular System
Switching and/or Distribution

High performance and expandable, the fourth generation S2084D offers a tremendously flexible architecture for high density 19" rack mounted switching configurations. A total of twenty rear-facing module slots are available to install a growing number amplifier or switching module types. Modules span DC-26GHz and include distribution amplifiers, attenuators and a variety of switches.

Link to obsolete System S2084B

Mainframe Views

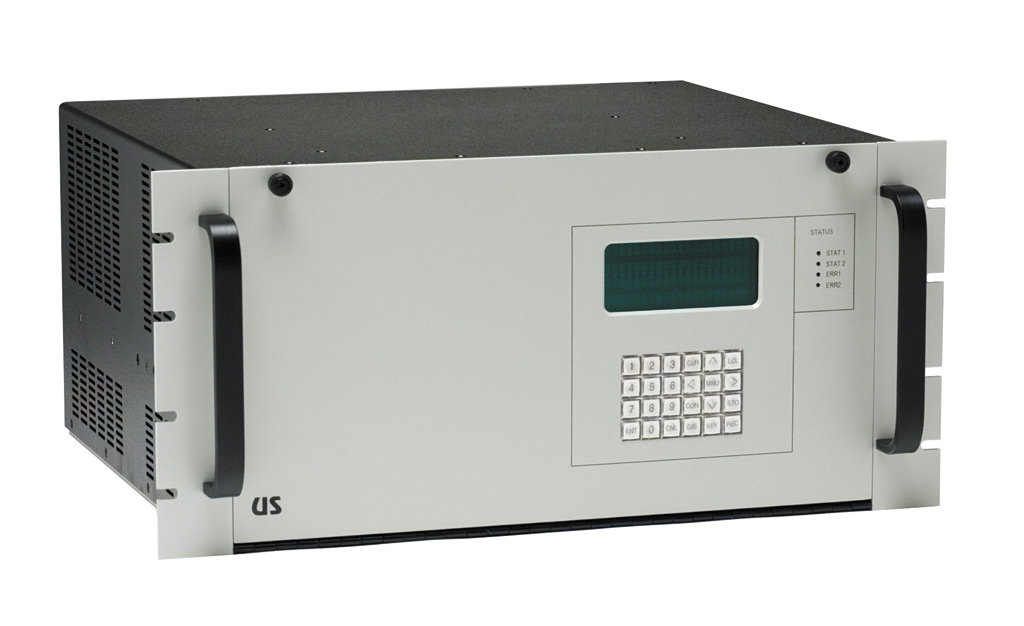

Front view
(large view)

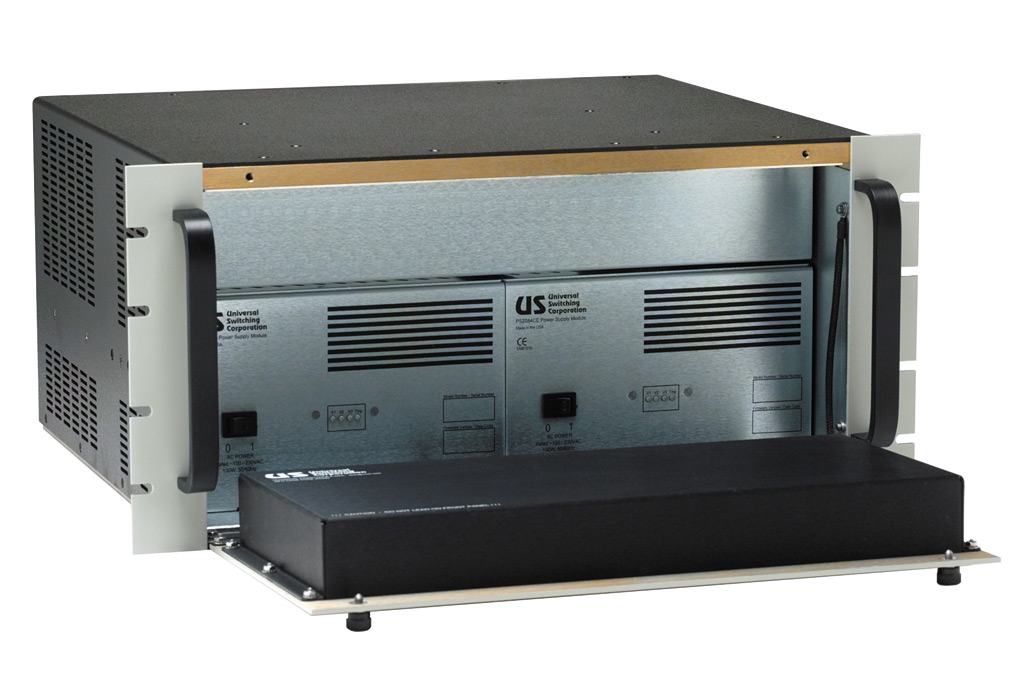

Front with hinged panel down
exposing hot-swap supplies
(large view)

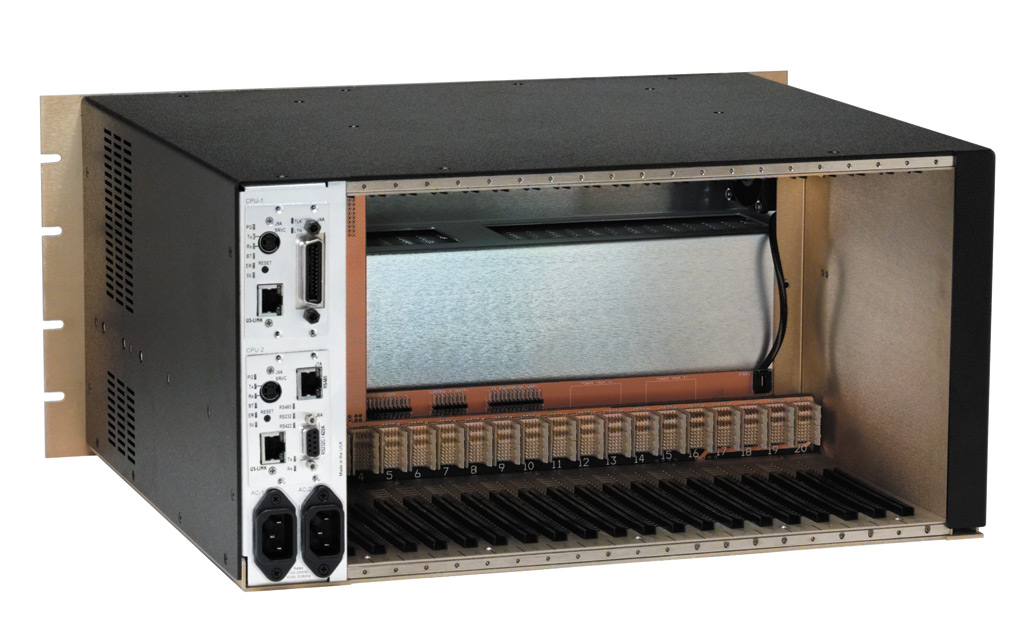

Rear view showing the
twenty empty slots
(large view)

Typical modules

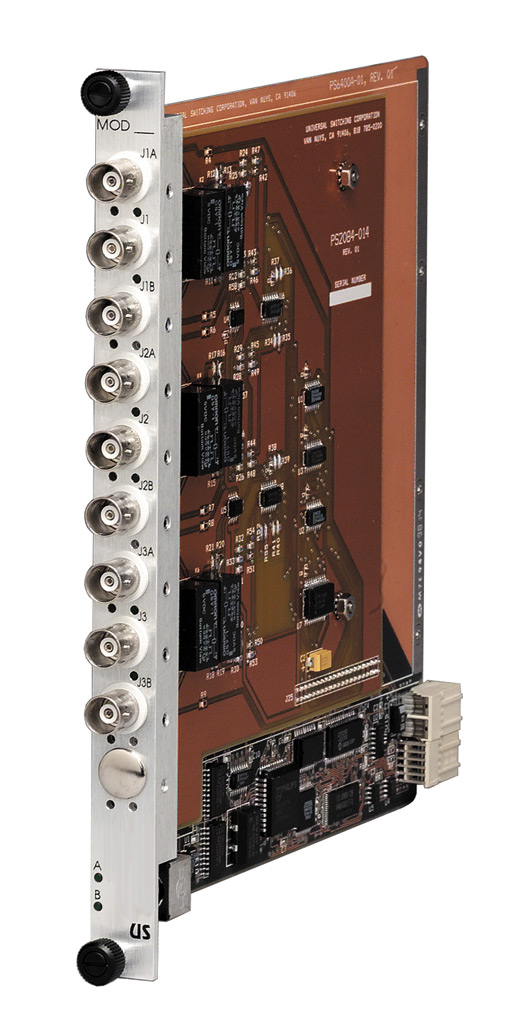

Triple 2x1 Back-up Switch
DC-800MHz

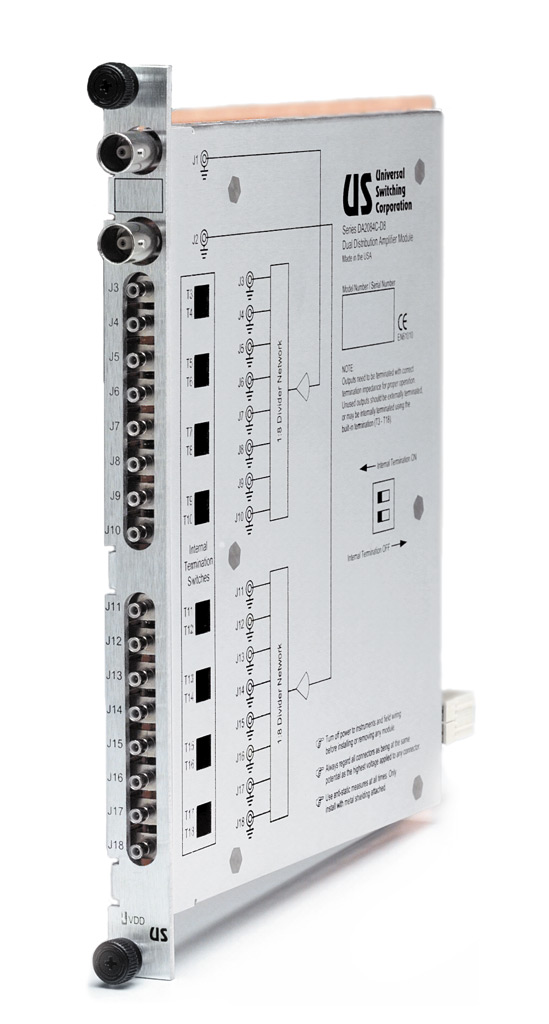

Dual 1x8 IF Distribution Amplifier
20-400MHz

These units also accept the C710 plug-in control CPU and remote interface modules. It can also accept up to two of these modules to address various user and system redundant control needs. All units include menu driven front panel keypad control and display. Redundant hot-swap power supply versions are available too, plus all units are CE marked for European import.

On special order, various types of inner backplane configurations are used to deliver a total system configuration by interconnecting the modules internally through the backplane.



Main Features

  • Compact size
  • Solid-state, relay, and fiberoptic crosspoints
  • Hot-Swap module technology
  • Low cost per crosspoint
  • Extreme reliability and quality
  • Advanced control and status features
  • Uses the advanced C710 CPU and interface
  • Field upgradeable program FLASH CPU
  • Standard front panel control and display
  • Ultra-low downtime with our Tri-Stage design
  • Redundant hot-swap power supplies and CPU available



Module Configurations

Basic
Model
Number

Number
of Slots

Switching
Configuration

Frequency
Range

Connectors

Switching
Technology

Used to Configure What?

VR2084D-903

1

  Triple 2x1

DC-1.3GHz
(-1dB)

BNC

Relay-based

Multiple independent backup ports. Up
to sixty 2x1 (or 1x2) may be installed
into a single mainframe.

VR2084D-703

1

 Triple 1x1with
single back-up

DC-500MHz

BNC

Relay-based

Three normal pass-through ports, each input (or output) may be swapped with
a hot spare port. Up to twenty in a single mainframe.

VR2084D-1004

1

  Quad 1x1with
single back-up

DC-350MHz

BNC

Relay-based

Four normal pass-through ports, each
input (or output) may be swapped with
a hot spare port. Up to twenty in a single mainframe.

VR2084D-63X1

1

Six 2x1

DC-3GHz

SMA

Relay-based

Multiple independent 2x1sections. Up
to 120ea 2x1(or 1x2) may be installed
into a single mainframe and used to
configure large switch arrays using cables. Additional contacts interconnect 1x2 via the backplane.

VR2084D-164X1

1

Sixteen Level 4x1

DC-1MHz

High density
D-Type (HD22)

Relay-based

Nineteen modules create a 16-level
(16 wire) 76x1 ATE switching system.

VS2084D-2804

1

2-wire 4x24
(or smaller)

DC-1MHz

SCSI II
DE-9
or
BNC

Solid-state

Eighteen modules create up to a
72x24, 2-wire (or single wire)
bi-directional switching system.

VR2084D-D4X1

1

Dual 4x1

DC-1GHz

SMA

Relay-based

Multiple independent 4x1sections. Up
to forty 4x1(or 1x4) may be installed
into a single mainframe and used to
configure large switch arrays using cables.

VR2084D-T2-26G

1

Three 2x1

DC-26GHz

SMA

Relay-based

Multiple 2x1sections. Up sixty 2x1 may be installed into a single mainframe and used to configure large switch arrays using cables.

VR2084D-8X1

1

Single 8x1

DC-1(3)GHz

SMA

Relay-based

Multiple independent 8x1sections. Up
to twenty 8x1(or 1x8) may be installed
into a single mainframe and used to
configure large switch arrays using cables.







NOTE: Universal Switching Corporation's policy is one of continuous product  development and improvement. Consequently, the company reserves the right to vary from the descriptions and specifications stated herein.
